See the report before you order.

Sample reports with the client details removed. Yours follows the same format.

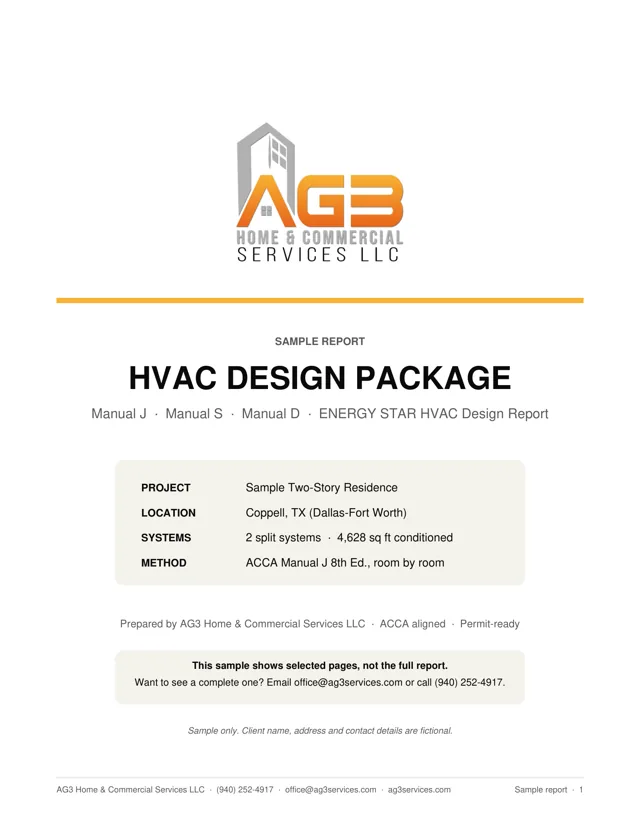

Cover of the AG3 sample HVAC Design Package

HVAC Design Package sample

One house, start to finish.

A two-story home with two systems: Manual J loads, Manual S equipment selection, the Manual D duct layout and the ENERGY STAR design report, the same way you'd receive it.

This sample shows selected pages. To see a complete report, send us a message.

16 pages · PDF · 1.4 MB

View sample Download PDF

Get one for your project

What's inside

What each report shows.

Every report comes from the same Wrightsoft model, so the loads, the equipment and the ducts all agree with each other.

MJ
Manual JHeat gain and loss for each room and the whole house, with the inputs used: walls, windows, orientation, infiltration and duct location.
MS
Manual SThe selected equipment and its capacity at your design conditions, compared with the loads.
MD
Manual DTrunk and branch sizes, friction rate, equivalent lengths and the airflow to each register.
ES
ENERGY STAR reportWhen ordered, the HVAC design report for the ENERGY STAR Single Family New Homes program.

Videos

Watch us work.

How we run a Manual J load calculation

How we model your duct layout in Wrightsoft®

Ready when you are

Let's size it right the first time.

Send your plans today and get an estimate back.

Upload your plans Call (940) 252-4917
